96-98 Mustang GT Hellion Turbo System

No reviews yet Write a Review
$5,995.00
SKU:
HELL-96-GT
Instructions:
Click to Download PDF

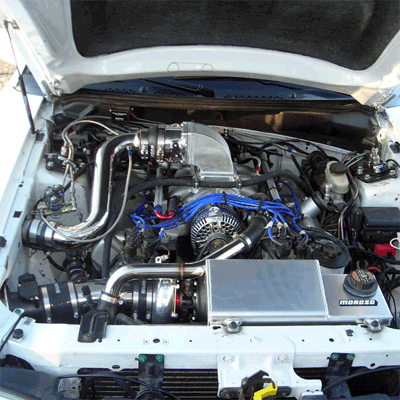

96-98 Mustang GT Hellion Turbo System

$5,995.00
System Includes:

* Turbonetics Turbocharger (1 year warranty)
* 16 gauge Stainless Steel hot and cold parts (Mild Steel Headers)
* High flow air to air intercooler
* High flow Turbonetics wastegate
* Silicone hose kit
* Stainless T-bolt clamp kit
* By pass valve
* Oil feed and drain lines
* All other necessary hardware to install kit

FREE SHIPPING!
No need to feel left behind, 96-98 GT owners, Hellion Power Systems has got you taken care of. Our kit for the 96-98 Mustang GT will transform your car into a 400 hp. monster, while still retaining your A/C, A/C lines, and your accessories. The kit comes complete with a 62mm Turbonetics Turbocharger, with a 1 year unconditional warranty from Turbonetics, the best in the industry. Also included in the kit, is everything you will need to install the kit, with basic tools, in your own driveway or garage. This kit is engineered to spool quickly, while still being capable of producing up to 600hp at the tires. System Options:

* Ball Bearing + US$400.00
* Bassani High Flow High Performance Catalytic Converter + US$125.00
* Delete Fuel Injectors - US$-249.00
* Delete Fuel Pump - US$-100.00
* Delete Mass Air Meter - US$-100.00
* Larger Turbocharger (Deletes Mass Air Filter, Fuel Pump, Injectors) - US$-449.00
* T-66 Turbonetics Turbocharger + US$595.00
* T-76 Turbonetics Turbocharger + US$595.00
* Turbo Heat Shield + US$75.00
* TurboXs Billet Blowoff Option with Bigger Turbo + US$150.00
See other tab for complete parts list.

Parts List

Complete Parts List:

1 (1) Turbonetics 62mm Turbo
2 (1) Turbonetics Evolution wastegate
3 (1) bar and plate intercooler 24x6x3
4 (1) 39lb injectors w/ adaptors (set of 8)
5 (1) fuel pump
6 (1) mass air meter
7 (1) mass air meter adapter flange, hardware
8 (1) k-member, a-arms and coil over kit
9 (1) Mitsubishi bypass valve
10 (1) main turbo inlet pipe
11 (1) crossover pipe
12 (1) downpipe
13 (1) exhaust double barrel
14 (1) cat or straight pipe
15 (1) y-pipe
16 (1) small wastegate pipe
17 (1) intercooler pipe 1
18 (1) intercooler pipe 2
19 (1) intercooler pipe 3
20 (1) boost inlet pipe/polished
21 (1) radiator hose 1 5/8 polished
22 (1) turbo 4" inlet pipe/polished
23 (1) turbo support bracket
24 (1) intercooler support bracket
25 (1) coolant can support rod and nut
26 (2) ps line splices 3/8"
27 (1) ps line hose 10"each/28 ft
28 (4) ps line high pressure clamps 3/8"
29 (1) oil feed line 47" #4
30 (2) 1/8 pipe to #4 90 degree fitting
31 (2) 2 inch hose clamps for radiator hose
32 (4) 3/4 inch hose clamps/idle hoses
33 (1) breather hose 5/8" x 20 "
34 (4) 5/8 breather hose clamps
35 (4) 4 to 4.5 inch hose clamps
36 (4) bypass hose clamps
37 (2) metric stainless bolts for wastegate
38 (2) 5/16 stainless bolts for wastegate 1" long
39 (1) metric bolt for turbo support bracket/38mm long
40 (1)metric bolt for turbo support bracket/35mm long
41 (2) metric bolts from intercooler to radiator support
42 (4) washers for metric bolts
43 (1)1/4 x 3/4 bolt ps line cooler bracket
44 (2) 1/ 4x 3/4 bolt for elec box relocation
45 (3) 1/4 inch nylock nuts
46 (6) 1/4 inch washers
47 (1) Adel clamp for a/c line 5/16" hole
48 (1) 5/16 x1/2 bolt to secure Adel clamp to boost hose
49 (1) 5/16 inch washer
50 (2) Metric bolts for oil drain to turbo
51 (2) washers for oil drain
52 (4) 3/8 x 1 1/2 bolts, nuts, and washers for turbo to turbine inlet
53 (2) 3/8 x 1 3/4 bolts and washers for crossover connection
54 (3) 3 inch torque clamps for exhaust
55 (1) rubber dog bone 1.75" center to center
56 (1) hanger for exhaust
57 (4) 3/8 x 2.5 bolts, nuts, and washers for y-pipe to mufflers
58 (2) turbo bracket spacers aluminum
59 (3) 5/16 x 3/4 bolts, nuts, and washers for intercooler support bracket, exhaust hanger
60 (1) #10 straight hose fitting
61 (1) #10 90 degree hose fitting
62 (1) #10 line, steel braided, 1 foot
63 (1) 3/8 to #10 oil return fitting
64 (10) 2.5" stainless T-bolt clamps
65 (2) 3 inch stainless T-bolt clamps
66 (1) 3 inch v-band clamp for turbo outlet
67 (8) NGK Spark plugs
68 (1) 4"/3.5" long silicone hose piece
69 (1) 4"/2" long silicone hose pieces
70 (5) 2.5 inch silicone hose pieces 3" long
71 (1) 3 inch silicone hose piece 3" long
72 (2) 1 3/8" x 2.5 silicone hose pieces
73 (1) 3 ft 7/32 vacuum line for bypass
74 (1) brass tee
75 (1) Turbo oil outlet flange
76 (1) #10 Turbo oil outlet extension fitting
77 (1) Turbocharger heat shield
78 (1) 1 5/8 inch clamp for wastegate tube
79 (1) punch for oil pan
80 (1) K and N air filter
81 (1) heat wrap roll
82 (2) stainless fan heat shields 6x3
83 (2) stainless heat shields for steering boots 4x5
84 (8) metal zip ties
85 (10) zip ties for ps hose retention
