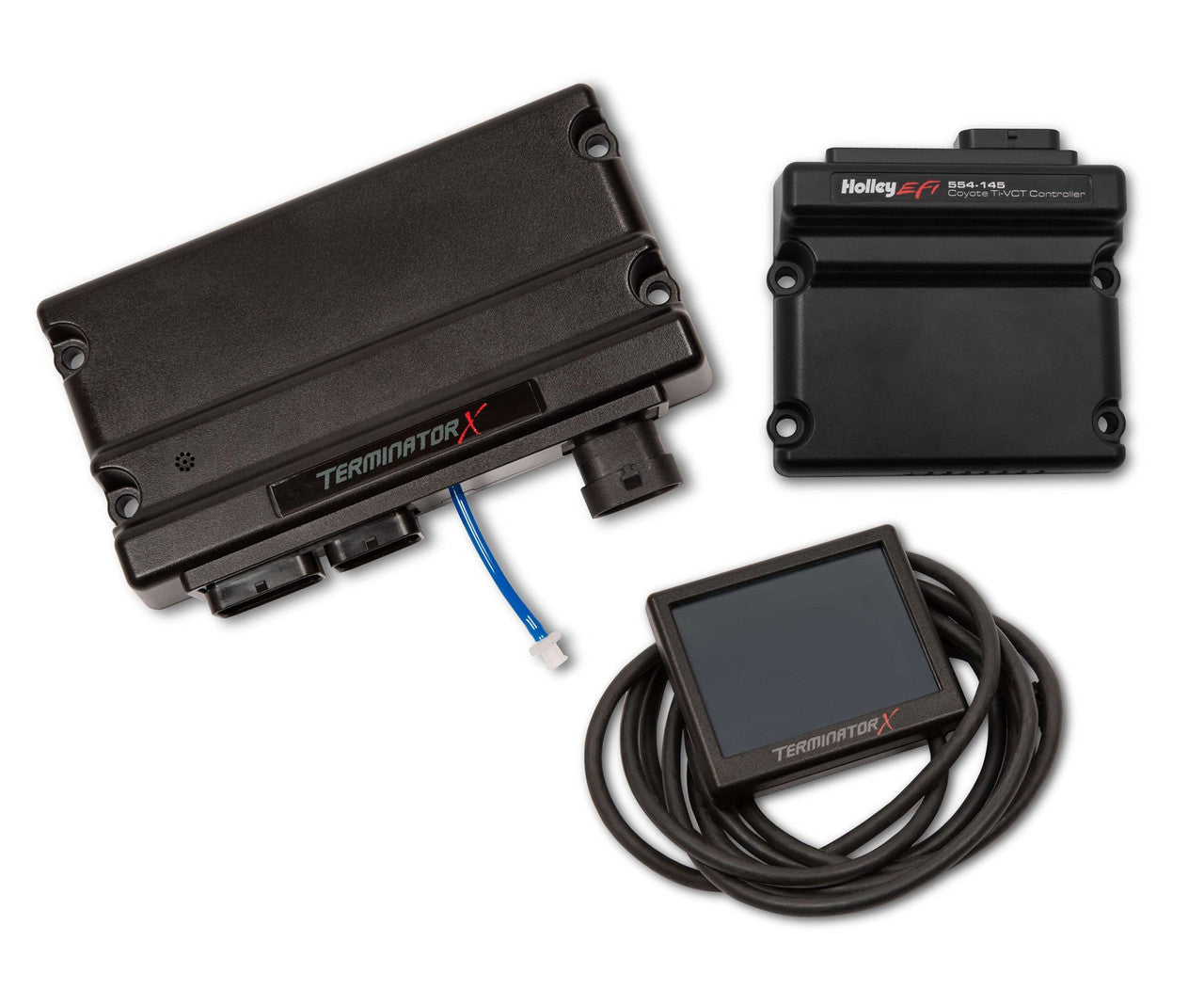

Holley EFI Terminator X Kit 3.5 Touchscreen 15.5-17 Ford Coyote EV1 W/ TI-VCT

No reviews yet Write a Review
$3,151.95
SKU:
HLY-550-1214
Instructions:
Click to Download PDF
UPC:
090127082393
Availability:
Ships from Manufacturer

Holley EFI Terminator X Kit 3.5 Touchscreen 15.5-17 Ford Coyote EV1 W/ TI-VCT

$3,151.95



2015.5-2017 Ford Coyote Engines with Ti-VCT and EV1 injectors, for Late Coils

OVERVIEW

Terminator X and X Max Coyote systems supports Ford Coyote platform with Ti-VCT. Terminator X features real-time fuel learn, high impedance injector drivers, integrated 1bar MAP sensor, and 4 programmable inputs and outputs. These are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X ECU comes fully loaded with base maps for common Coyote engine combinations to get you out of the garage and on the road/track fast. The included 3.5" LCD touch screen handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Included with Terminator X is Holley EFI's industry leading support, easy to use software suite that allows full laptop access/compatibility for advance users. Whether you're building a budget beater or full on race car, Terminator X has the industry leading features and technology you need at a price that won't break the bank.

Features:

  • Plug and play engine control (for Ford 5.0L Coyote with Ti-VCT (Twin Independent Variable Camshaft timing)
  • Plug and Play compatible with Holley EFI accessories – Analog gauges, shift lights, modules, and both 6.86” and 12.3” Pro Dash
  • EV1 or EV6 injector harness included (depending on your injector configuration)
  • High Impedance Injector drivers power Holley EFI and most stock injectors -Injector support chart found in instructions (will not support low impedance injectors)
  • Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control
  • Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications – internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)
  • Vacuum hose adapters included - (1/8”, ¼”, and 3/16” sizes)
  • 4 inputs – 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake
  • Boost Control – boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties
  • Nitrous Control – channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)
  • Advanced Tables – ( 4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options
  • On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance
  • 3.5” touchscreen handheld included - Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine
  • Compact ECU (Engine Control Unit) – At only 7.45” x 4.1” x 1.66” the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6” x 4.1” x 1.66”). REMINDER: diagnostic LED’s must face up!
  • FREE EFI Tuning software – For compete control of your Terminator X power plant

3

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.



The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle



WARNING: It is against the law to install this part on an Emissions Controlled Vehicle



The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle
